Description

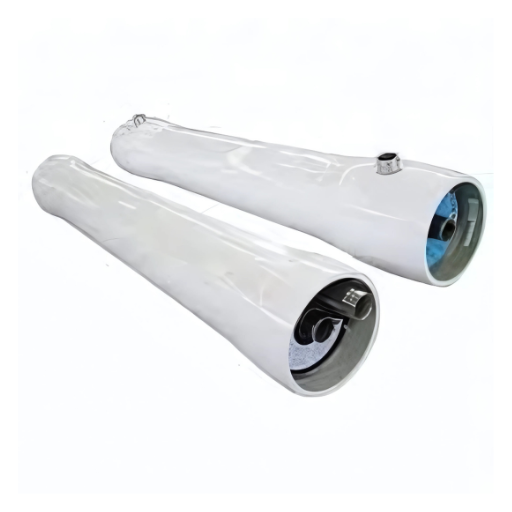

RO Membrane Housing

The RO Membrane Housing 4040 is a pressure vessel used to house reverse osmosis (RO) membranes in water purification systems. These housings are crucial components as they withstand the high pressures required for the RO process to function effectively.

Outline and Manufacture:

1. It is generally cylindrical in shape, made from FRP (fiberglass reinforced plastic) for durability and high-pressure resistance.
2. It is available in two main configurations:
3. End-port: Water inlet and outlet are located at opposite ends of the housing.
4. Side-port: Water inlets are located at one end, and permeate (filtered water) and concentrate (rejected water) outlets are located on the side.
5. Its Internal diameter is precisely designed to accommodate standard 4040 RO membranes (4 inches in diameter and 40 inches long).
6. Its Feature reinforced end caps and heavy-duty sealing components to prevent leaks under pressure.

RO Membrane Housing Price-INR 4799/-

4040 RO Membrane Housing Advantages

1. High pressure resistance:It can withstand operating pressures typically ranging from 150 to 1000 psi, ensuring optimal RO performance.
2. Durable Manufacture:Its FRP material provides long-lasting performance and resistance to corrosion and chemicals.
3. Easy maintenance:Its Simple design allows for easy cleaning and replacement of membranes.
4. Versatility: It is Available in various sizes and configurations to suit various system requirements.

RO Membrane Housing Specification

1. These housing comes in the End Port and Side Port model.
2. The Internal diameters of these vessels are mirror finished to a tolerance of ±0.1mm, due to this loading & unloading of membranes is very easy.
3. Polyurethane paints are used for polishing & coating of these housing, this provides UV resistance as well as excellent aesthetics.
4. The End Cap of these housing comes with a single piece molded seal plate along with a distinctive high grade seal ring and a durable aluminum bearing plate with a 3 turn stainless steel ring for locking. Due to this distinctive design removal and insertion of the end cap becomes very easy.
5. 1 Inch half union is provided as a permeate port. Also available are other options of 1 1/1″ BSP (M) threads and 1″ BSP (F) threads. (We provide NPT threads as per request).
6. Saddle and SS straps are supplied with all models.
