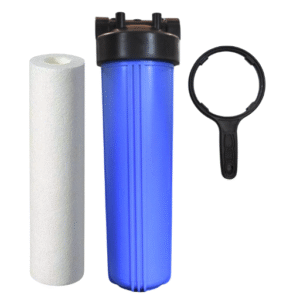

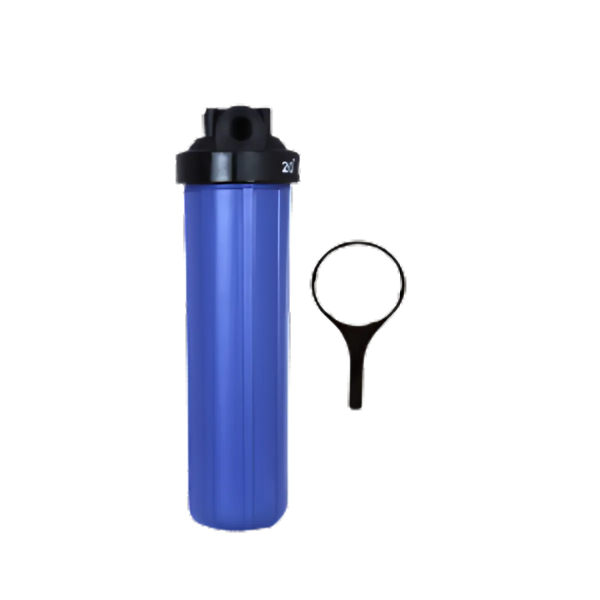

Cartridge Filter Housing

A Cartridge Filter Housing is a container which holds a filter cartridge that can be changed. The filter cartridge eliminates impurities from the water as it passes through the housing. Cartridge filter housings are employed in various settings, such as homes, businesses, and industrial water treatment facilities.

Filter Housing kinds for Cartridges

There is a wide array of cartridge filter housings for selecting from, each possessing distinct characteristics and advantages. Several frequently encountered types encompass:

  • These Filter housings have with multiple cartridges.
  • These housings have the capacity to hold several filter cartridges in a sequence, enabling the removal of a broader range of impurities from the water.
  • it  is a Large-sized housings: These housings are designed to accommodate larger filter cartridges, making them suitable for applications that require high water flow.

Cartridge Housing Filter Advantages

These are the following capacity is mentioned below:

  • Installation and maintenance of these products is simple.
  • They offer a cost-efficient solution.
  • These items are flexible and can be utilized for various purposes.
  • They have the capability to eliminate a broad spectrum of impurities from the water.

Multi Cartridge Filter Housing Specifications

  • These housings are constructed using top-notch virgin polypropylene material to ensure durability and prevent any leakage.
  • To their thick walls, they can withstand high levels of pressure and have a longer lifespan.
  • Their sleek design and simple maintenance make them best for replacing cartridges and are highly suitable for applications in RO Systems, UV Sterilizers, Carbon filters, and other water treatment technologies.
  • Additionally, they are available in a wide range of connection sizes to accommodate various requirements.

Technical Specifications:


  • Housing Sump / Top Polypropylene
  • Vent Polypropylene with Stainless Steel Spring and Screw
  • “O”-ring / Gasket Silicon, FKM, Buna-N, EPDM

Suitable cartridge

  • Length 20”
  • Diameter 4.5”
  • End Connection DOE / ZeroLeak (for 4.5” OD Cartridges only)


  • Housing Size 10”
  • Diameter Jumbo (for 4.5”)
  • Connection Type BSP (F) Threaded
  • Connection Size (Jumbo) 1”, 1.5”

Operating conditions

  • Maximum operating pressure 0.8 MPa (8.0 bars; 113.7 psid) @ 21°C (69.8°F)
  • Operating temperature range 4°C (39.2°F ) to 70°C ( 158°F )

Flow rates

  • 20” Jumbo upto 8 m3 /hr

Cartridge Filter Housing Price – INR- 2649/-
