Description

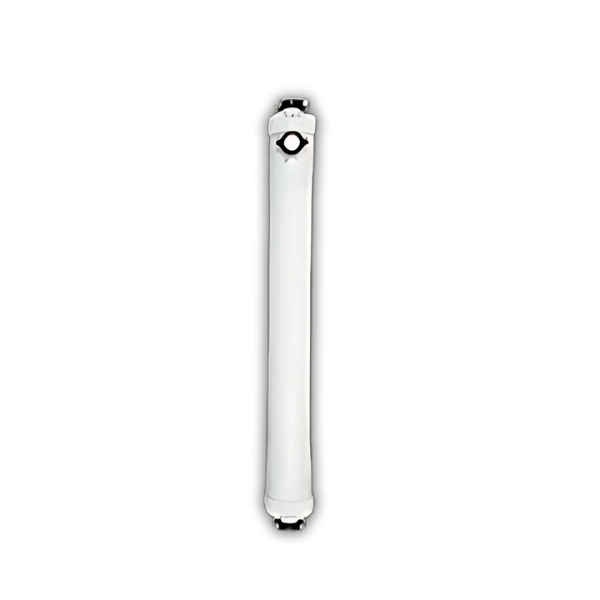

Ultrafiltration Membrane

Ultrafiltration Membrane is a pressurized hollow fiber membrane module designed for ultrafiltration (UF) applications. This technology removes suspended solids, colloids, bacteria, viruses, and other impurities from water while allowing smaller molecules like water to pass through.

Main Features:

  1. It has 30% smaller footprint design (compared to HFU)
  2. It has 10% initial cost reduction (fewer pipes and valves)
  3. It has Increased flow capacity
  4. Applications:-
  5. Drinking water
  6. Industrial process water
  7. Pretreatment for seawater RO desalination
  8. Secondary and Tertiary wastewater



Ultrafiltration Membrane Price – INR 296499/-

Ultrafiltration Membrane Applications

  1. It is initially used for Drinking water treatment.
  2. The HFUG-2020AN can be used to eliminate contaminants from surface water, groundwater, and other sources, providing clean and safe drinking water.
  3. It is also used for Industrial procedure water treatment.
  4. This membrane can be used in different industries such as food and beverage processing, pharmaceutical manufacturing, and electronics production to preterit water for different procedures.
  5. Seawater desalination pre-treatment: The HFUG-2020AN can be used as a pre-treatment step in reverse osmosis (RO) desalination systems to remove larger particles and protect the RO membranes.
  6. Municipal wastewater treatment: This membrane can be used in municipal wastewater treatment plants to remove solids and improve effluent quality.

Ultrafiltration Membrane Advantages

  1. It has High-quality filtrate which productively eliminates various impurities while allowing water to pass through, for offering clean and purified water.
  2. Is has Compact design which needs less space compared to other filtration technologies, making it appropriate for different applications.
  3. It is Durable and trustable.
  4. The PVDF membrane and enhanced sealing make sure long-lasting performance and leak-free operation.
  5. It has Flexible operation.
  6. Wide pressure range allows for adaptation to different system configurations.
Ultrafiltration Membrane Specifications
Model Name/Number HFUG-2020AN
Diameter 8.5 Inch
Maximum Feed Water Flow 15 (66) m3/h (GPM)
Outer Membrane Surface Area 90 (969) m2 (ft2)
Maximum Air Flow 9 (5.3) Nm3/h (scfm)
Length 2,160 mm
Maximum Inlet Pressure 300 (44) kPa (psi)
